Realtime Coastal Observation Network (RECON) Station
Cleveland Central Buoy   Location: 41° 44.011´ N,   81° 41.904´ W,   Depth: 74 ft (22.6 m)

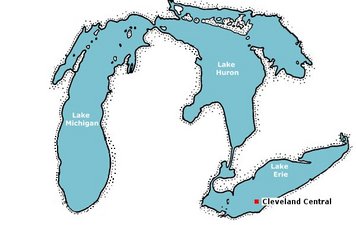

Photo of Station Map of Station


Conditions around 8:00 pm EST on Mon, Nov 23, 2009 (01:00 GMT)
NOTE: Italic data is more than four hours old
(Data updated hourly at about :20 minutes past the hour)
 Data Plots
Air Data:
Wind Speed: 7.96 kts   (4.09 m/s)   [Sep 23] R.M. Young Wind Monitor
Maximum Wind Speed: 9.26 kts   (4.76 m/s)   [Sep 23] R.M. Young Wind Monitor
Wind Direction: 245.2°   (WSW)   [Sep 23] R.M. Young Wind Monitor
Air Temperature: 71.5 °F   (22.0 °C)   [Sep 23] R.M. Young Wind Monitor

Water Data:
Surface Water Temperature: 69.5 °F   (20.8 °C)   [Sep 23] CSI Temp Probe

Significant Wave Height: 0.3 ft   (0.08 m)   [Aug 16] WH-ADCP Profiler
Maximum Wave Height: 0.3 ft   (0.10 m)   [Aug 16] WH-ADCP Profiler
Peak Wave Period: 2.90 secs   [Aug 16] WH-ADCP Profiler
Wave Direction: 4.0°   (N)   [Aug 16] WH-ADCP Profiler
ADCP Temp at Bottom: 53.0 °F   (11.7 °C)   [Aug 16] WH-ADCP Profiler

Dissolved Oxygen: -1.4 %Sat   (-0.14 mg/L)   [Sep 23] YSI Multiprobe
pH: 7.51   [Sep 23] YSI Multiprobe
Turbidity: 3.5 NTU   [Sep 23] YSI Multiprobe
YSI Temperature: 57.5 °F   (14.2 °C)   [Sep 23] YSI Multiprobe
YSI Depth: 70.94 ft   (21.622 m)   [Sep 23] YSI Multiprobe

Temp @ 34.5 ft (10.5 m) Depth: 68.39 °F   (20.22 °C)   [Sep 23] Temperature String
Temp @ 50.9 ft (15.5 m) Depth: 68.12 °F   (20.07 °C)   [Sep 23] Temperature String
Temp @ 57.4 ft (17.5 m) Depth: 63.63 °F   (17.57 °C)   [Sep 23] Temperature String
Temp @ 60.7 ft (18.5 m) Depth: 58.22 °F   (14.57 °C)   [Sep 23] Temperature String
Temp @ 67.3 ft (20.5 m) Depth: 57.21 °F   (14.01 °C)   [Sep 23] Temperature String

Current @ 11.5 ft (3.5 m) Depth: 0.31 kts (16.1 cm/s),   201.9°   (SSW)   [Aug 16] WH-ADCP Profiler
Current @ 21.3 ft (6.5 m) Depth: 0.32 kts (16.2 cm/s),   243.3°   (WSW)   [Aug 16] WH-ADCP Profiler
Current @ 31.2 ft (9.5 m) Depth: 0.38 kts (19.6 cm/s),   271.2°   (W)   [Aug 16] WH-ADCP Profiler
Current @ 41.0 ft (12.5 m) Depth: 0.26 kts (13.6 cm/s),   263.7°   (W)   [Aug 16] WH-ADCP Profiler
Current @ 50.9 ft (15.5 m) Depth: 0.17 kts (8.7 cm/s),   293.0°   (WNW)   [Aug 16] WH-ADCP Profiler
Current @ 60.7 ft (18.5 m) Depth: 0.07 kts (3.6 cm/s),   270.0°   (W)   [Aug 16] WH-ADCP Profiler

Engineering Data:
ADCP Depth: 71.53 ft   (21.80 m)   [Aug 16] WH-ADCP Profiler
ADCP Compass Heading: 170.3°   (S)   [Aug 16] WH-ADCP Profiler
ADCP Pitch: 1.2°   [Aug 16] WH-ADCP Profiler
ADCP Roll: 9.2°   [Aug 16] WH-ADCP Profiler

YSI Battery Voltage: 13.5 volts   [Sep 23] YSI Multiprobe

Buoy Compass Heading: 11.2°   (N)   [Sep 23] KVH Fluxgate Compass

Solar Panel Voltage: 17.83 volts   [Sep 23] Buoy Electronics
Solar Panel Current: 1.736 amps   [Sep 23] Buoy Electronics
Battery Voltage: 13.54 volts   [Sep 23] Buoy Electronics
Battery Current: 1.351 amps   [Sep 23] Buoy Electronics (neg = discharging)
Buoy Current: 0.366 amps   [Sep 23] Buoy Electronics
U/W Hub Current: 0.006 amps   [Sep 23] Buoy Electronics

Signal Strength: -79.0 dB   [Sep 23] RSL at Shore Station
Data Throughput Rate: 0.566 Mbits/sec   [Sep 16] FTP Transfer Buoy to Shore

Last data download at Mon Nov 23 20:12:13 EST 2009
