Realtime Coastal Observation Network (RECON) Station
Cleveland North Buoy   Location: 41° 48.836´ N,   81° 41.929´ W,   Depth: 77 ft (23.6 m)

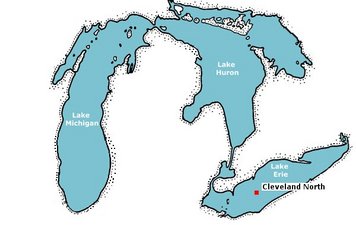

Photo of Station Map of Station


This station is no longer in operation.




Conditions around 05:00 am EDT on Mon, Sep 3, 2007 (09:00 GMT)
 Data Plots
Air Data:
Wind Speed: 10.63 kts   (5.47 m/s)   [Sep 03] R.M.Young Wind Monitor
Maximum Wind Speed: 11.93 kts   (6.13 m/s)   [Sep 03] R.M.Young Wind Monitor
Wind Direction: 262.4°   (W)   [Sep 03] R.M.Young Wind Monitor
Air Temperature: 72.6 °F   (22.6 °C)   [Sep 03] CSI Temp Probe

Water Data:
Pressure Sensor: 46.919 psia   (32.350 dbar)   [Sep 03] Pressure Sensor near Bottom
Significant Wave Height: 0.0 ft   (0.00 m)   [Sep 03] Pressure Sensor near Bottom
Peak Wave Period: 0.00 secs   [Sep 03] Pressure Sensor near Bottom

Dissolved Oxygen: 90.2 %Sat   (7.68 mg/L)   [Sep 03] YSI Multiprobe
YSI Temperature: 74.1 °F   (23.4 °C)   [Sep 03] YSI Multiprobe
YSI Depth: 44.46 ft   (13.550 m)   [Sep 03] YSI Multiprobe
YSI Battery Voltage: 12.5 volts   [Sep 03] YSI Multiprobe

Dissolved Oxygen (#2): 0.4 %Sat   (0.04 mg/L)   [Sep 03] YSI Multiprobe #2
YSI Temperature (#2): 54.2 °F   (12.3 °C)   [Sep 03] YSI Multiprobe #2
YSI Depth (#2): 65.26 ft   (19.890 m)   [Sep 03] YSI Multiprobe #2
YSI Battery Voltage: 12.6 volts   [Sep 03] YSI Multiprobe #2

Dissolved Oxygen (#3): -2.0 %Sat   (-0.22 mg/L)   [Sep 03] YSI Multiprobe #3
YSI Temperature (#3): 54.2 °F   (12.4 °C)   [Sep 03] YSI Multiprobe #3
YSI Depth (#3): 73.23 ft   (22.318 m)   [Sep 03] YSI Multiprobe #3
YSI Battery Voltage: 12.4 volts   [Sep 03] YSI Multiprobe #3

Engineering Data:
Buoy Compass Heading: 4.2°   (N)   [Sep 03] KVH Fluxgate Compass

Solar Panel Voltage: 0.00 volts   [Sep 03] Buoy Electronics
Solar Panel Current: 0.005 amps   [Sep 03] Buoy Electronics
Battery Voltage: 10.74 volts   [Sep 03] Buoy Electronics
Battery Current: -0.352 amps   [Sep 03] Buoy Electronics (neg = discharging)
Buoy Current: 0.342 amps   [Sep 03] Buoy Electronics
U/W Hub Current: 0.013 amps   [Sep 03] Buoy Electronics
U/W Hub Voltage: 9.99 volts   [Sep 03] U/W Hub Electronics

Signal Strength: -79.0 dB   [Sep 05] RSL at Shore Station
Signal Strength: -77.0 dB   [Aug 29] RSL at Relay Buoy
Data Throughput Rate: 0.020 Mbits/sec   [Sep 04] FTP Transfer Buoy to Shore

Last data download at Mon Sep 3 05:14:13 EDT 2007
